Cessna 172S Skyhawk · Interactive procedures

Step-by-step

Walk through each flow one action at a time. The control you need lights up on the panel, with the reason behind every step.

Configure the cabin and systems so the engine can be started safely. · REF POH Section 4 — Before Starting Engine

OUTSIDE / CABIN

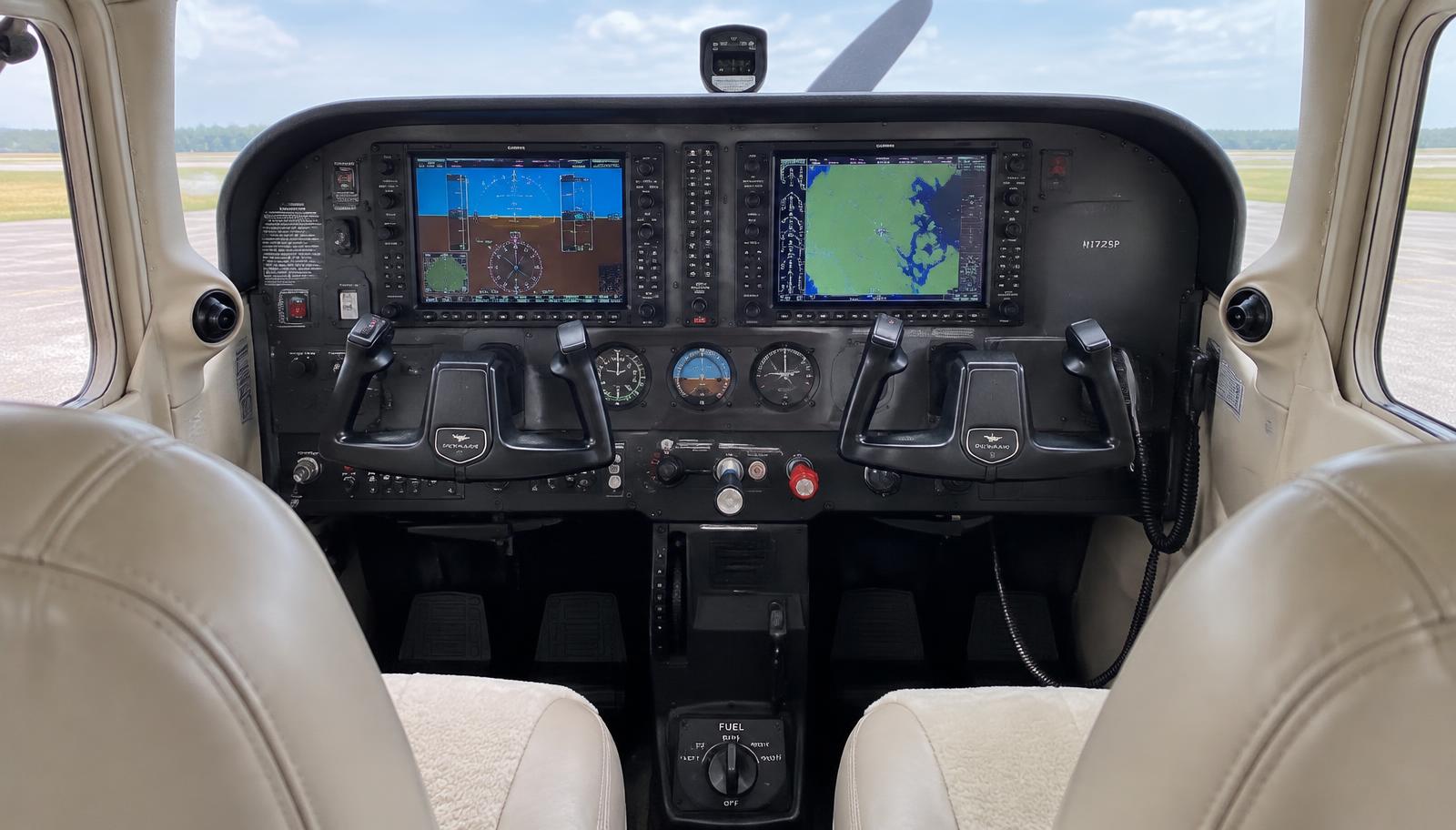

Illustrative cockpit image — dot shows approximate location

STEP 1 / 8

Preflight inspection

COMPLETE

Why · Every start begins with a completed walkaround — fuel sumped, oil checked, controls free.

How to do it · Walk around the aircraft as per the checklist. Use the fuel tester and check from the front, side and rear.

What it does · Visual inspection detects damage, leaks, ice and loose parts before they become failures.

Confirm · No leaks, no cracks or dents, tyres in good condition, controls moving freely, tanks full as planned, covers and chocks removed.

Common mistake · Rushing the inspection. Most findings are only seen at close range.

Ground · POH Section 4 — Before Starting Engine · NEXT: Passenger briefing COMPLETE

← PREVNEXT →

Arrow keys work too

1. 01Preflight inspectionCOMPLETE
2. 02Passenger briefingCOMPLETE
3. 03Seats & seat beltsADJUST & LOCK
4. 04BrakesTEST & SET
5. 05Electrical equipmentOFF
6. 06AVIONICS switch (BUS 1 & 2)OFF
7. 07Fuel selector valveBOTH
8. 08Fuel shutoff valveON (push full in)

EDUCATIONAL USE ONLY. Content is summarised from manufacturer documentation for learning. It is not approved flight or maintenance data. Always use the current, aircraft-specific POH/AFM, FCOM, QRH, AMM and operator procedures.
